Heavy Duty Hydraulic Gantry Shear 800 Ton With 8000 Mm Feeding Length And 25 MPa Pressure For Scrap Steel Processing

Heavy Duty Hydraulic Gantry Shear 800 Ton With 8000 Mm Feeding Length

And 25 MPa Pressure For Scrap Steel Processing

1. Product Positioning

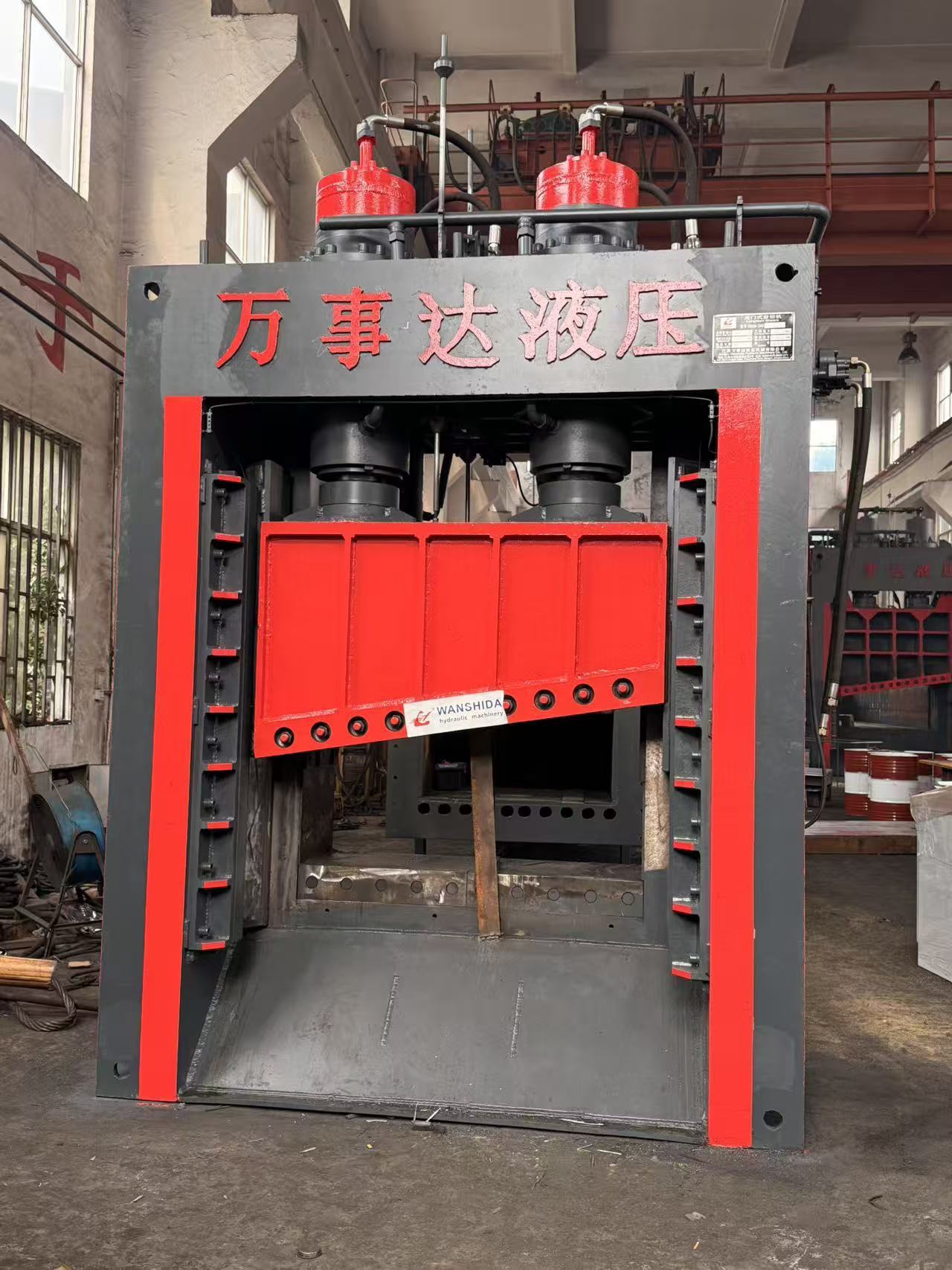

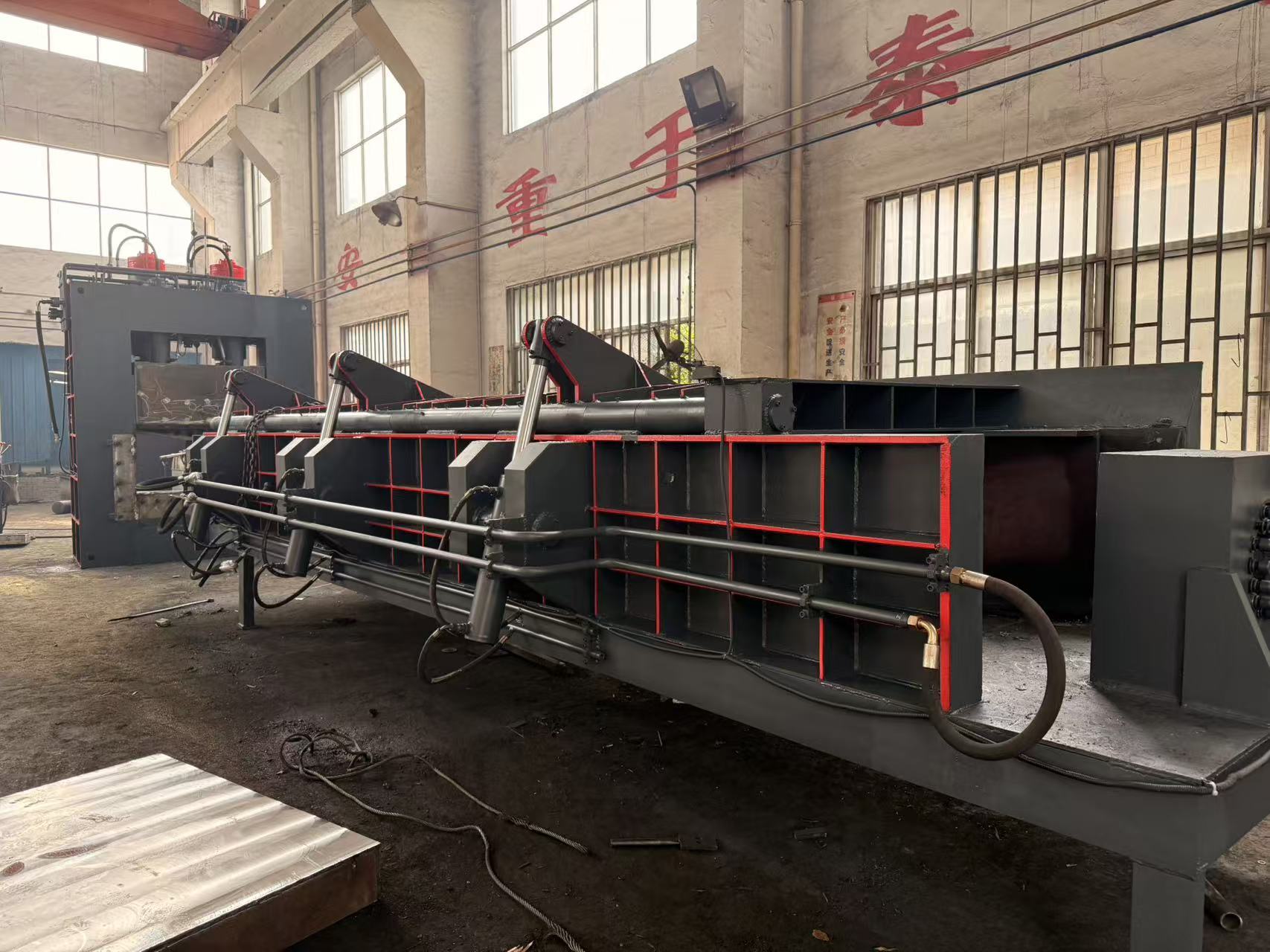

The hydraulic gantry shear (Q43L-8000L) is a heavy-duty industrial machine designed specifically for processing large volumes of heavy scrap metal. It is primarily used for cutting steel plates, rebar, structural steel, and mixed heavy scrap into manageable sizes for transportation and furnace charging.

This equipment is typically installed in large-scale recycling plants, steel mills, and shipbreaking facilities where continuous operation and high cutting capacity are required. Unlike smaller shear machines, this gantry shear is engineered for long-term, high-load operation, making it a core piece of equipment in modern scrap processing lines.

2. Technical Specifications

3. Application Scenarios

In the recycling industry, processing mixed steel scrap is often inefficient due to irregular shapes and inconsistent sizes. A gantry shear helps improve workflow by enabling continuous and stable cutting.

In steel plants, handling structural steel and rebar can be challenging, especially when dealing with oversized materials. The long feeding chamber allows these materials to be processed more smoothly without frequent repositioning.

In the shipbreaking industry, thick steel plates require strong and reliable cutting performance. The high cutting force ensures consistent results even under heavy working conditions.

In construction and demolition projects, scrap materials are often irregular and difficult to manage. A stable hydraulic system allows uniform cutting and improves overall processing efficiency.

4. Core Selling Points Explanation

Heavy Duty Cutting Capacity
The 8000 kN cutting force is designed to handle thick steel plates and dense structural materials, ensuring efficient processing without repeated cutting cycles

Extended Feeding Chamber
The 8000 mm feeding length allows long materials to be processed directly, reducing the need for pre-cutting and improving workflow efficiency

High-Pressure Hydraulic System
The 25 MPa hydraulic system ensures consistent pressure output, which is essential for maintaining stable cutting performance under heavy loads

Automatic PLC Control
The PLC system enables automated operation, reducing manual intervention and improving overall production efficiency

Air Cooling System
The air cooling design ensures stable operation during long working hours and reduces maintenance complexity

5. Parameter-Based Proof

The machine’s performance is supported by key technical parameters rather than general descriptions

8000 kN cutting force enables processing of heavy and thick scrap materials

8000 mm feeding chamber allows direct input of long materials without additional handling

25 MPa hydraulic pressure ensures stable cutting force even during continuous operation

270 kW motor power provides sufficient energy for high-load industrial applications

2–3 cuts per minute ensures consistent throughput for large-scale processing

These parameters directly translate into improved productivity, reduced labor cost, and lower operational risk

6. Problem Solving

Scrap processing companies often face the following challenges

Difficulty handling oversized and irregular scrap materials

Low cutting efficiency when processing thick steel

High labor costs due to manual handling and repositioning

Frequent equipment downtime caused by unstable systems

This gantry shear addresses these issues through

High cutting force for heavy materials

Continuous feeding structure for long scrap

Stable hydraulic system for consistent performance

Automatic control system to reduce labor dependency

7. FAQ

What materials can this gantry shear process
It is suitable for steel plates, rebar, structural steel, and mixed heavy scrap

What is the expected production capacity
Capacity depends on material type and feeding conditions, but the machine is designed for continuous industrial operation

Can it process long scrap materials
Yes, the 8000 mm feeding chamber is specifically designed for long material handling

Is the machine suitable for heavy-duty operation
Yes, it is built for continuous high-load industrial use
